Quick Overview

ZRTM 100 - 500 kVA Series

Details

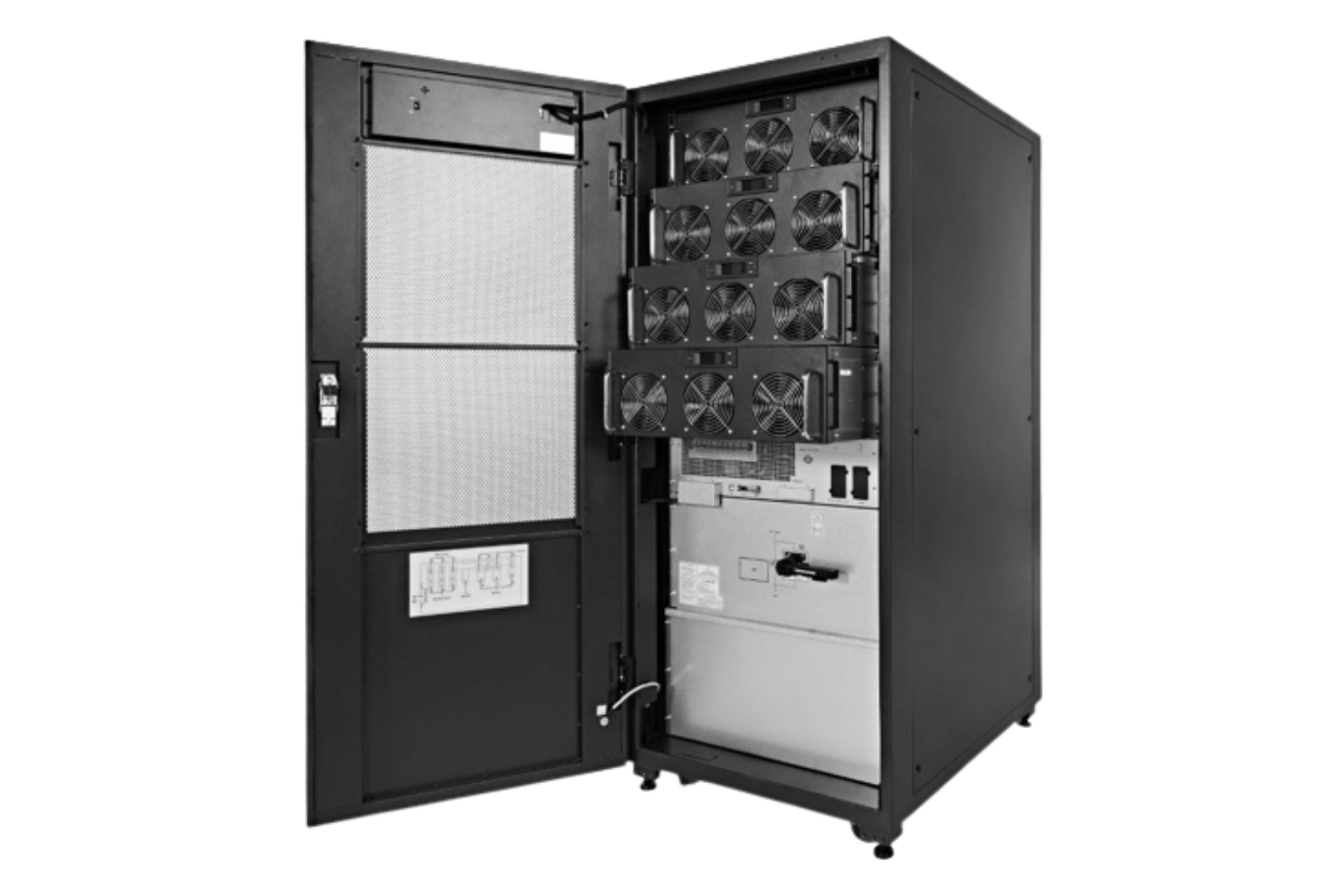

  ZRTM 200K

                                                  Specifications

     Model:   ZRTM 200K

     Capacity kVA:   150 / 200

     No. of phases IN : OUT  -  3:3

     Input

     Voltage:   380 / 400 / 415 VAC

     Voltage range:   -43% ÷ 25%

     Frequency:   50 / 60 Hz

     Frequency range:   -20% ÷ 20%

     THDi:   <3%

     Input power factor:   ≥ 0,99

     Output

     Voltage:   380 / 400 /415 VAC

     Voltage regulation Static / Dynamic:   ±1% / ±2%

     Frequency:   50 / 60 Hz ± 0,05 Hz

     Overload capacity:   110% - 10 min, 125% - 1 min., 150% - 5 sec., >150% - 200 ms

     Bypass overload:   125% - lucru constant, 130% - 10 min., 150% - 1 min., > 150% - 300 ms

     Short circuit capacity:   340% from nominal current with 200 ms

     Efficiency:   >96%

     Efficiency in ECO MODE:   99%

     Crest factor:   5:1

     Batteries

     Type:   Without maintenance, sealed VRLA AGM

     Cold start:   Yes

     Battery configuration:   30 ÷ 40 pcs, 12V

     Charging time:   3 ÷ 8 hours up to 90% off capacity

     Weight and dimensions without batteries

     UPS dimensions (W x D x H):   650 x 960 x 600 mm

     UPS weight:   305 kg  I  350 kg

     Communications

     Indicators operating mode:   Display LCD 7’’, LED indicators x4, sound alarm, LCD in each feeding module

     Comunicatii:   RS232, RS485, MODBUS RTU/ASCII, USB, Dry Contact, SNMP, REPO, Parallel slots

     Environment

     Noise level - depending of load and temperature:   < 62 dB (A)

     Working temperature for UPS:   0°C ÷ 40°C

     Recommended working temperature for UPS and batteries:   15°C ÷ 25°C

     Storage temperature:   -15°C ÷ 55°C

     Humidity:   5 ÷ 95 % (without condensing)

     Certifications

     Standards:   EN 62040-2:2005, EN 62040-2:2006, EN 60950-1, CE



                                       Optional

     - SNMP card

     - Remote status panel

     - Uninterruptible external Bypass maintenance

     - Software

     - Modbus card and Dry contacts

     - Battery cabinets or racks
